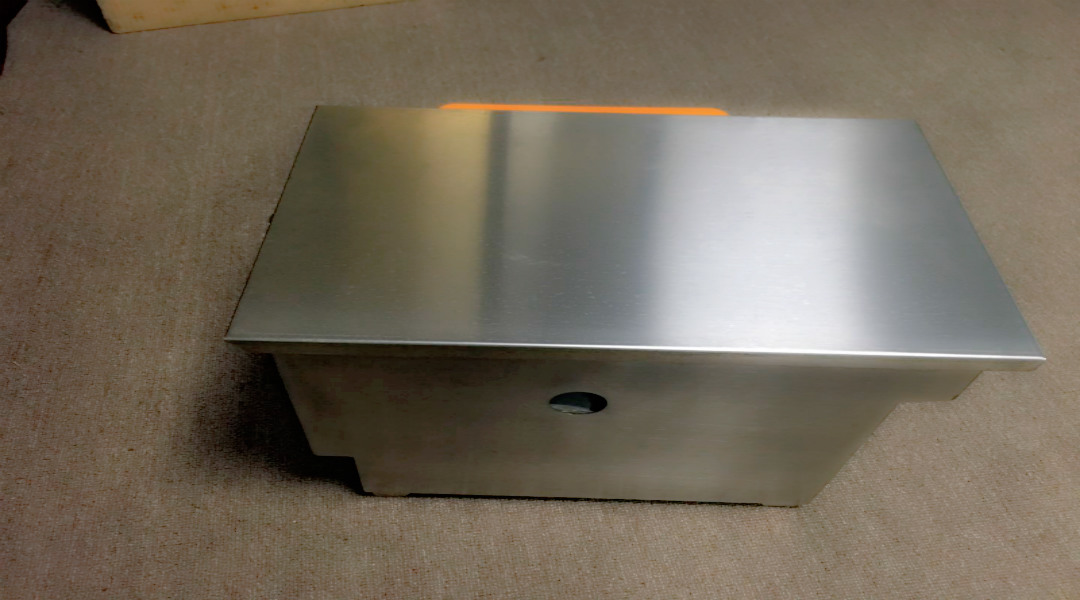

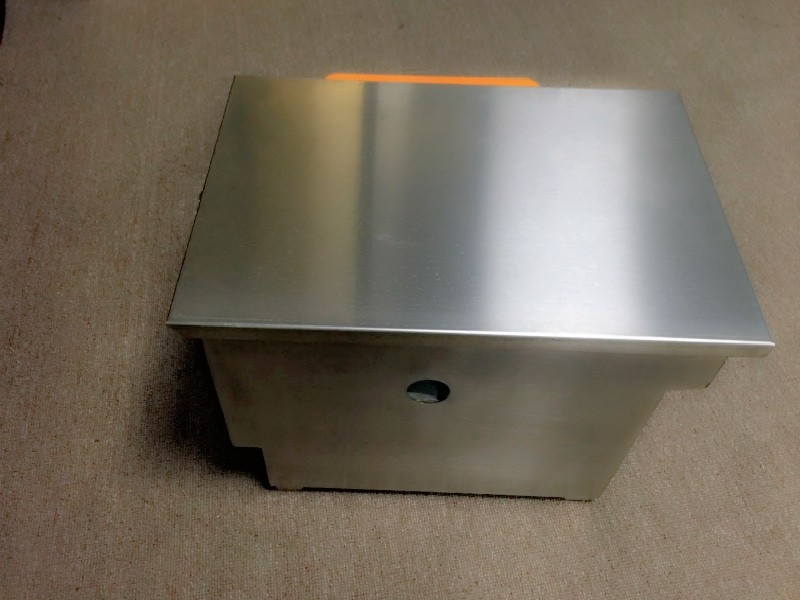

Automatic Fat Separator P-A 5 In Stainless Steel

Automatic Fat Separator P-A 5 In Stainless Steel

Product Descrption

F. O. G (Fat, oil, grease) is one of the main pollution source in present City Drainage System. Cngreasetrap grease trap ( oil-water separator/ fat separator) is a kind of special equipement that effectively separates and removes F. O. G at sourse, thus it prevents the drainage system from blocking and environmental pollution. Cngreasetrap grease trap keeps your kitchen tidy, avoid the drainage blocking, prevents the hogwash oil from backflowing to the table at source and we can make our own contribution to protecting the our common family - environment.

Specification

1. Product name: Automatic Fat Separator P-A 5 In Stainless Steel

2. Brand name: Cngreasetrap

3. Model No.: P-A 5

4. Color: Silvery

5. Material: Stainless steel (S. S 304)

6. Style: Household edition

7. Patents: National invention patent, National utility model patent, International PCT

Model P-A 5 (5GPM)

Style Automatic oil-water separator under sink (house-hold edition)

Material Stainless steel 304

Design Automatic non-powered design

Dimension( Equipment) 385*255*270 mm

Dimension(oil tank) 215*90*225 mm

Dias of Inlet & Outlet Hose 57mm, 38mm

Flow Rate 5 GPM

Carton Size 440*260*29.5 mm

Mass Product Time 30 days

1. Non-powed separation and remove technology;

2. No electrical & chemical addtive;

3. Innovative automatic design, easy operation;

4. Only small place is required to install the automatic fat separator P-A 5, quickly assembled;

5. Simple cleaning and maintenance;

6. Made of stainless steel, the automatic stainless steel fat separator P-A 5 is durable and nice-looking.

1. Automatic stainless steel fat separator P-A5 can remove more than 95% of the F. O. G from the waste water, and trap at least 95% of solid residual from kitchen waste;

2. Automatic stainless steel fat separator P-A5 is able to effectively prevent the drainage from blocking;

3. Fat separator P-A5 avoids the pollution caused by wasted oil;

4. Saving energy and time to clean the kitchen, fat separator P-A5 is eco-friendly;

5. The collected oil by the unit could be transformed into biological diesel oil, soap, leather fatliquoring agent, and other biological technogy product, because of the high purity (more than 95%)

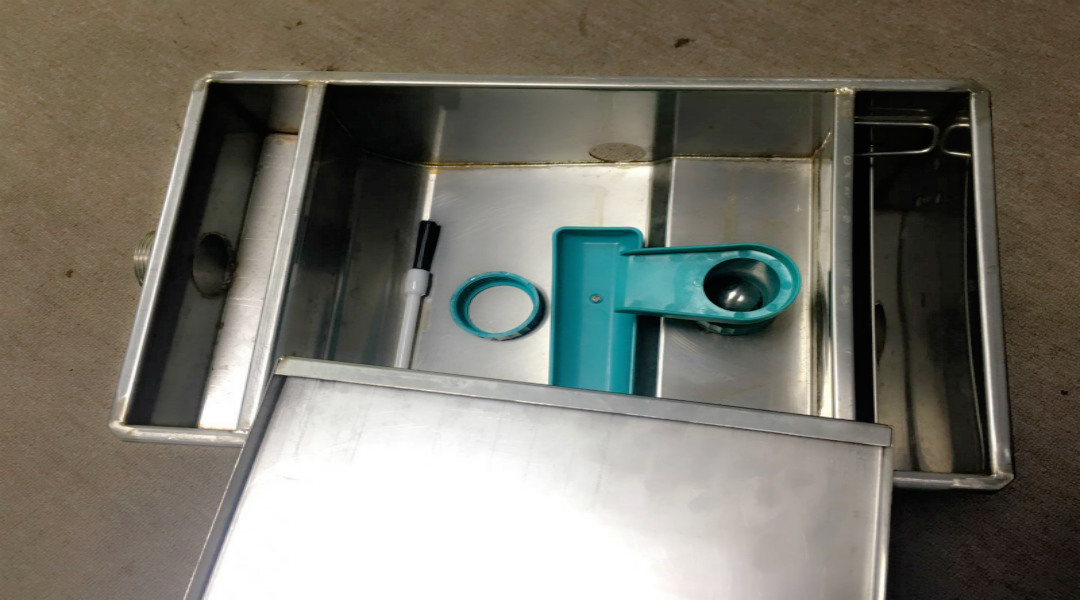

1. Empty and clean the strain basket everyday;

2. Stir the bottom of the chamber with the special rod and open the flush valve each 3-4 days to discharge the sediment (20 seconds);

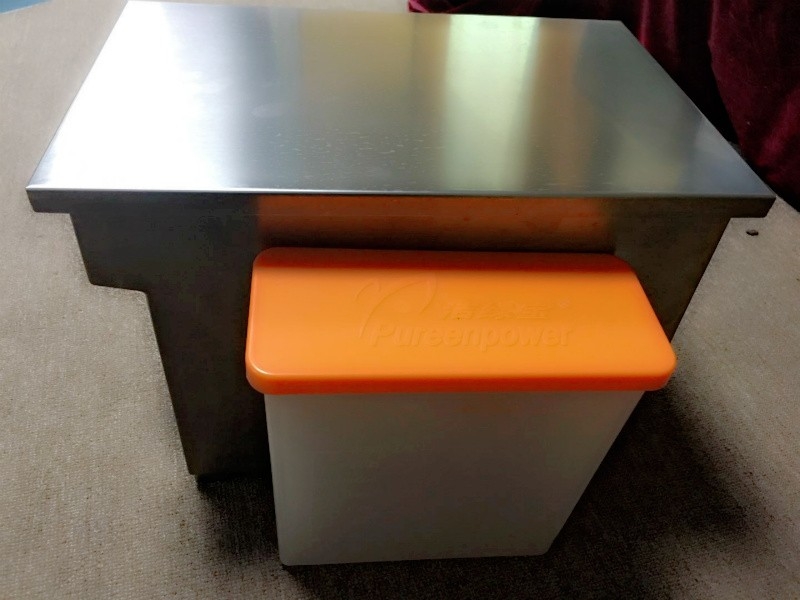

3. Check and empty the oil container usually whenever it is full;

4. Check the oil outlet periodically, clean it with a small brush;

5. Start the heater when the grease condensation.

P-A 5 is used uder sink in our home kitchens, it is the household edition. Cngreasetrap grease traps can be widely applicated as the following:

1. Houses, hotels, restaurants, fast stores;

2. Dining hall of schools, enterprises, factories;

3. Comprehensive drainage of community, campus;

4. Food processing plants, oil refinery, car washing and ect.

5. Pre-treatment of municipal water treatment.
